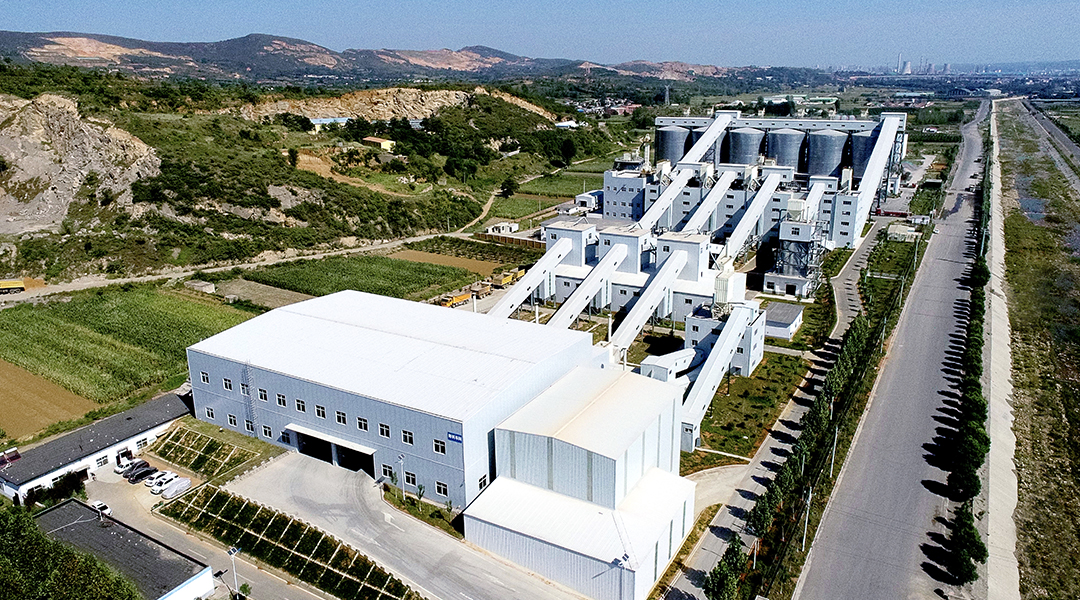

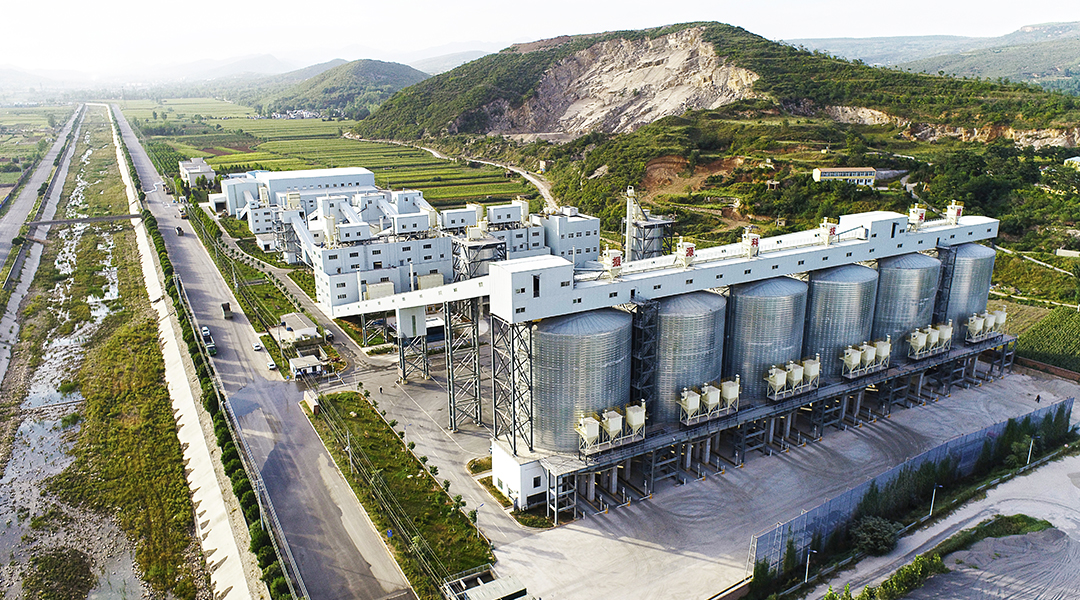

The project is located in Sanmenxia, Henan and was built by Zhenyuan Technology. This Stone Crushing & Screening System adopts Grizzly vibrating feeding system, two-stage crushing and two-stage screening from 1000mm limestone input size to 0-5mm/5-10mm/10-20mm/20-31.5mm finished sand & aggregate output size.
Processing Materials: Limestone
(Metamorphic Limestone with average compressive strength of 110 MPa)
Input Size: 0-1000mm
Output Size: 0-5mm/5-10mm/10-20mm/20-31.5mm
Capacity:3000TPH

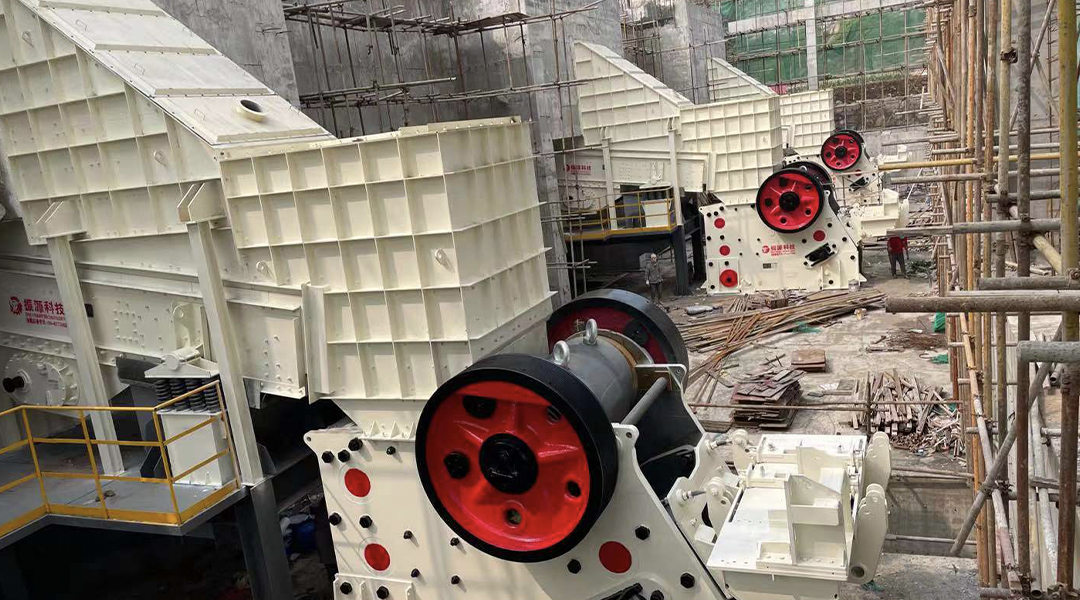

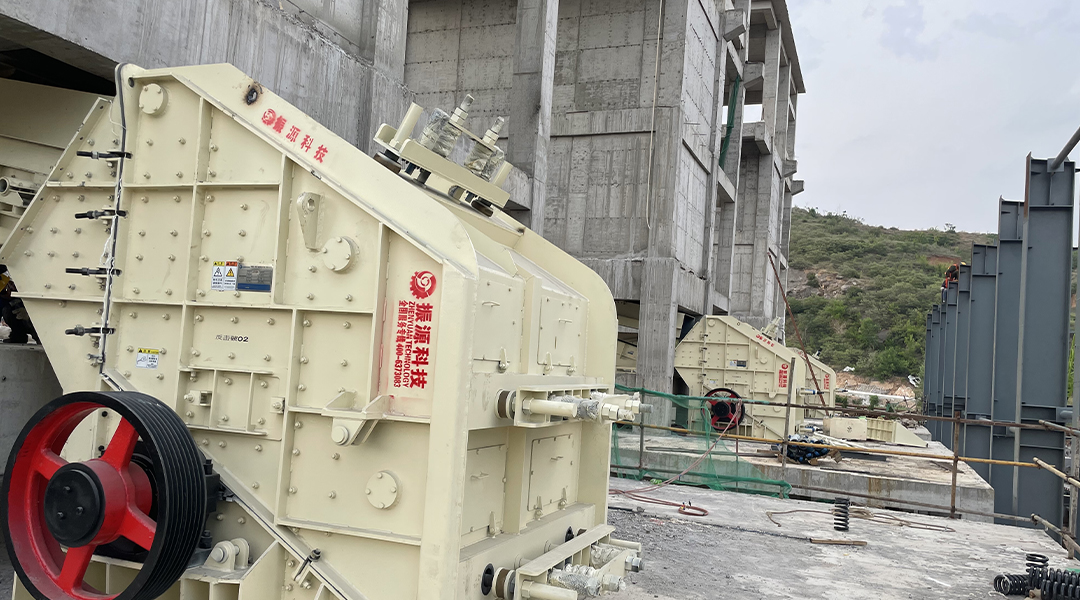

Equipment Configuration: ZSW1860 Grizzly Vibrating Feeder(3 sets), C160 Jaw Crusher(3 sets), NP1624 Impact Crusher(6 sets), 3SYKH3685 Circular Vibrating Screen(12 sets), 2SYKH3685 Circular Vibrating Screen(1 set), VSI6X1263 Vertical Shaft Impact Crusher(2 sets), 2SYKH3075 Circular Vibrating Screen(2 sets)
