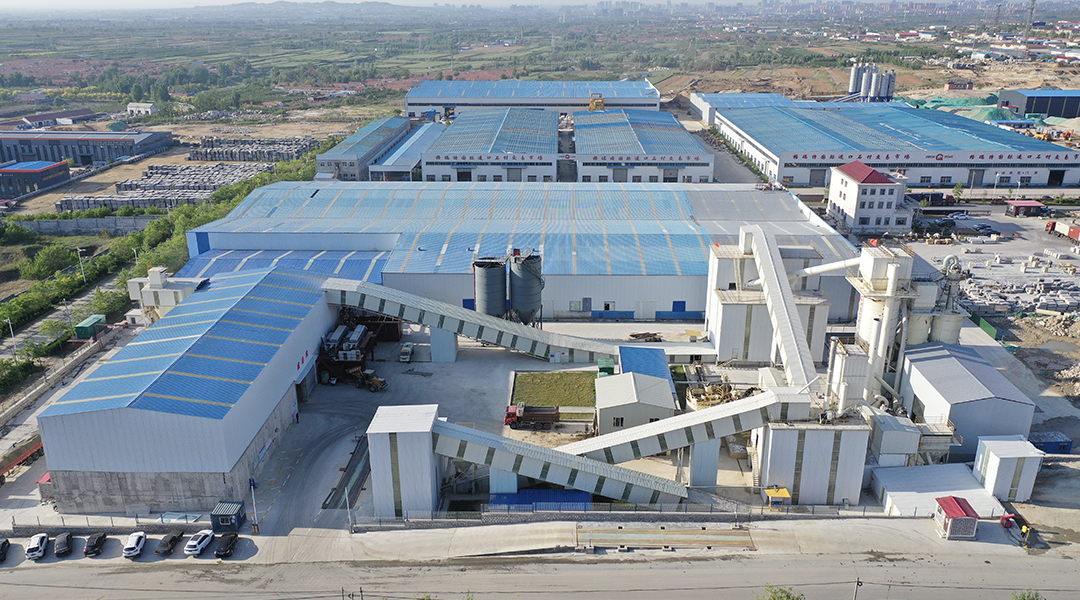

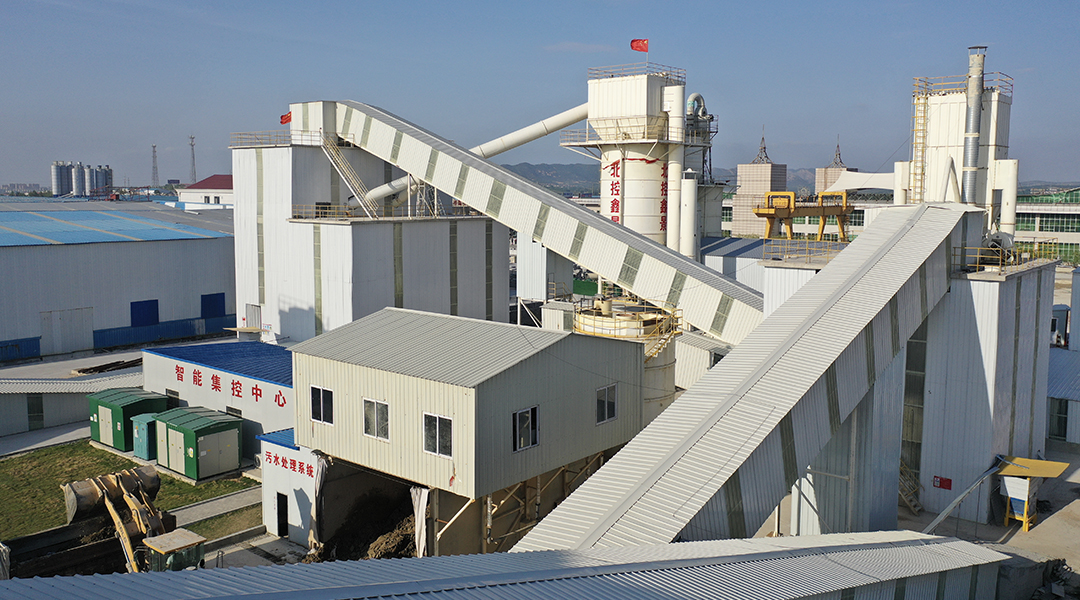

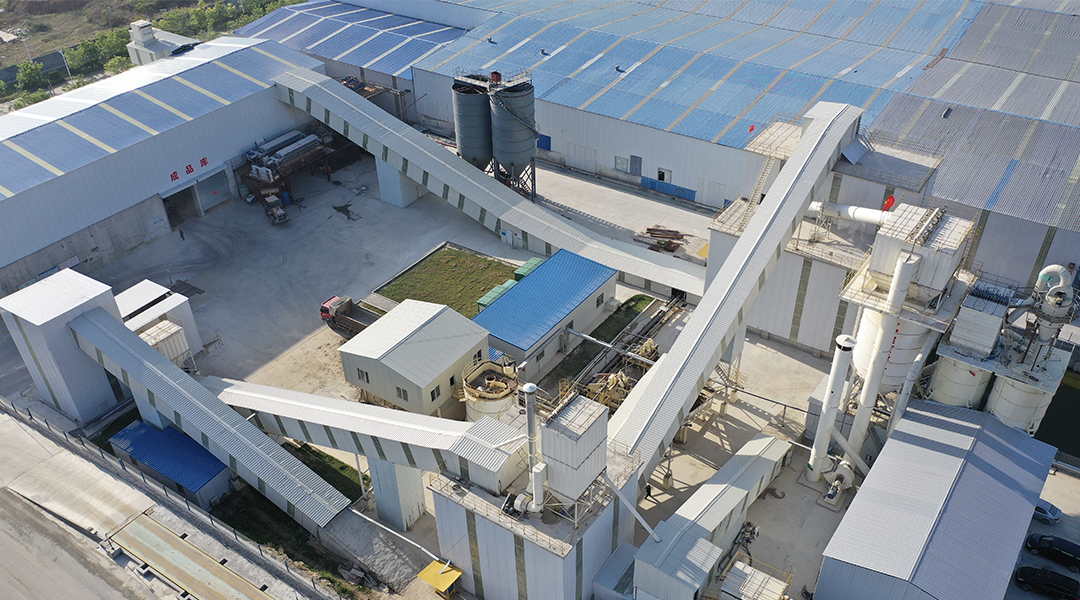

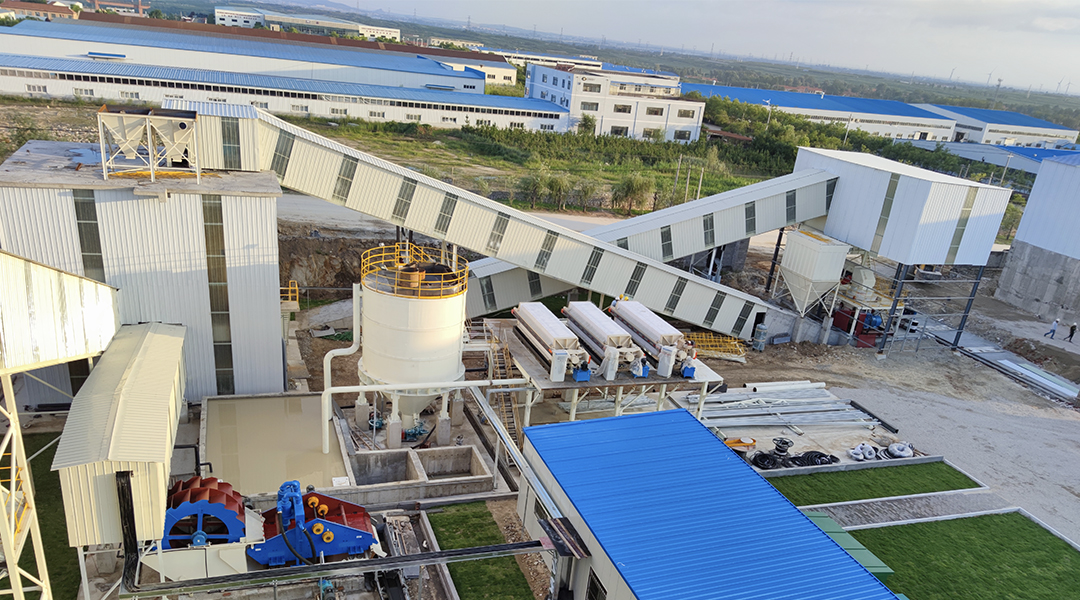

The project is located in Laizhou, Shandong and was built by Zhenyuan Technology. This Sand & Aggregate Production Line adopts Grizzly vibrating feeding system, two-stage crushing and two-stage screening from 800mm granite input size to 0-5m/10-20mm finished sand & aggregate output size.
Processing Materials: Granite
Input Size: 0-800mm
Output Size: 0-5mm/10-20mm
Capacity:500TPH
Equipment Configuration: ZSW1560 Grizzly Vibrating Feeder(1 set), PE1000*1200 Jaw Crusher(1 set), ZHP500 Cone Crusher(1 set), 2SYKH3075 Circular Vibrating Screen(2 sets), VSI6X1263 Vertical Shaft Impact Crusher(2 sets), 2SYKH3075 Circular Vibrating Screen(2 sets)
