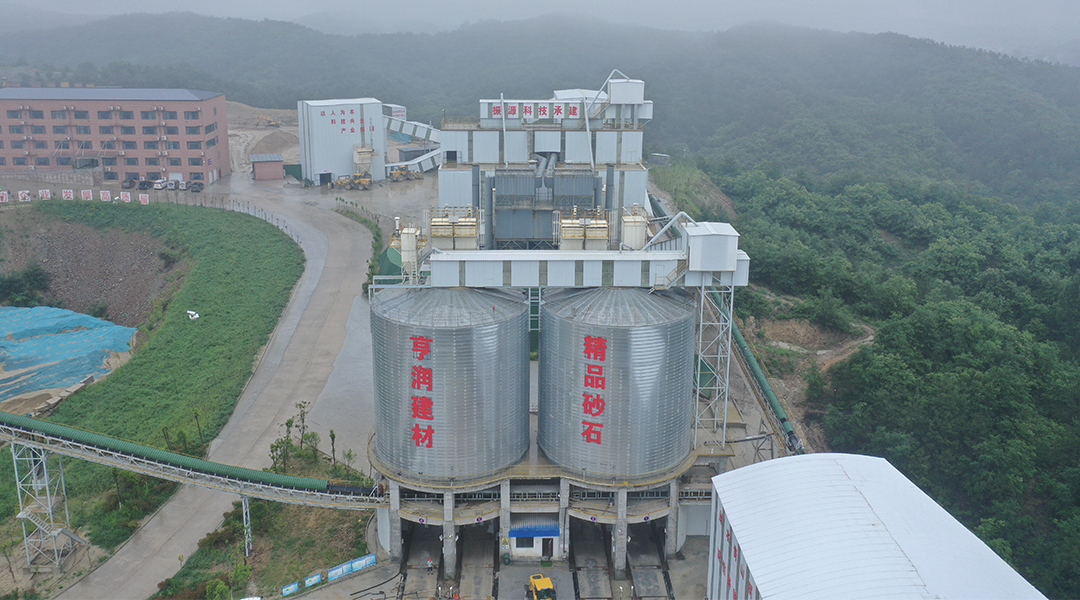

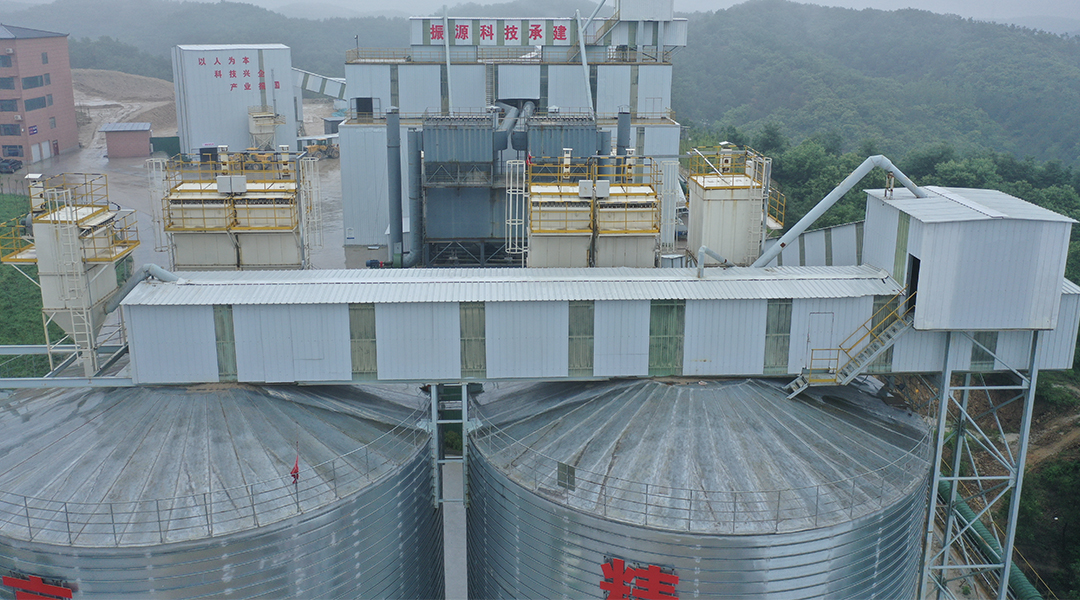

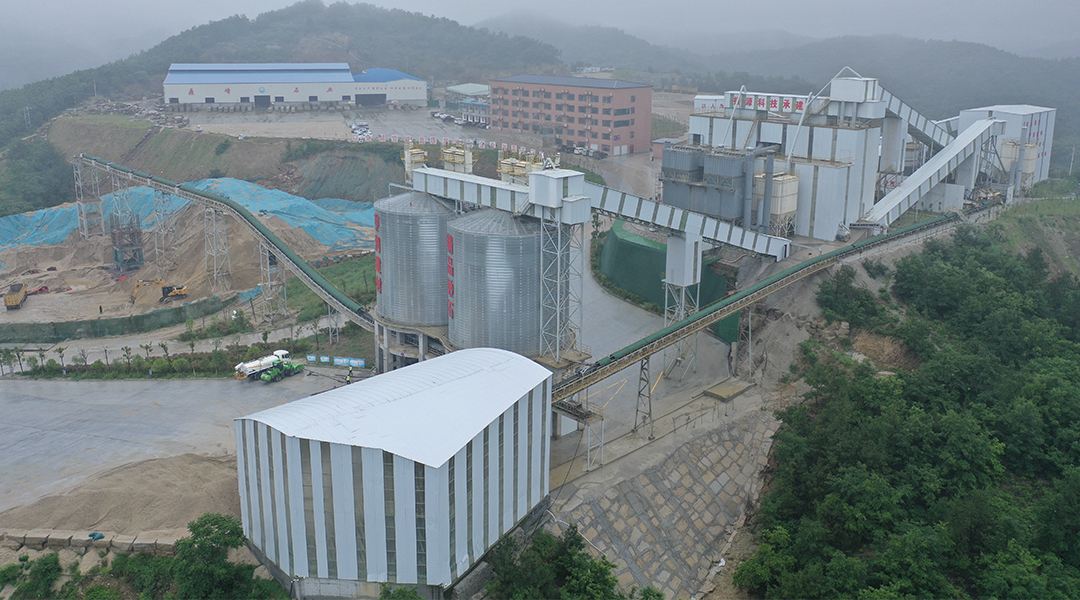

The project is located in Nanyang, Henan and was built by Zhenyuan Technology. This Sand Making Production Line adopts vibrating feeding system, three-stage crushing and two-stage screening from 1000mm granite input size to 0-5m finished mechanical sand output size.
Processing Materials: Granite
Input Size: 0-1000mm
Output Size: 0-5mm
Capacity:850TPH
Equipment Configuration: ZSW1560 Vibrating Feeder(2 sets), PE1000*1200 Jaw Crusher(2 sets), ZHP500 Cone Crusher(2 sets), 3SYKH3075 Circular Vibrating Screen(2 sets), VSI6X1263 Vertical Shaft Impact Crusher(4 sets), 2SYKH3075 Circular Vibrating Screen(4 sets)
